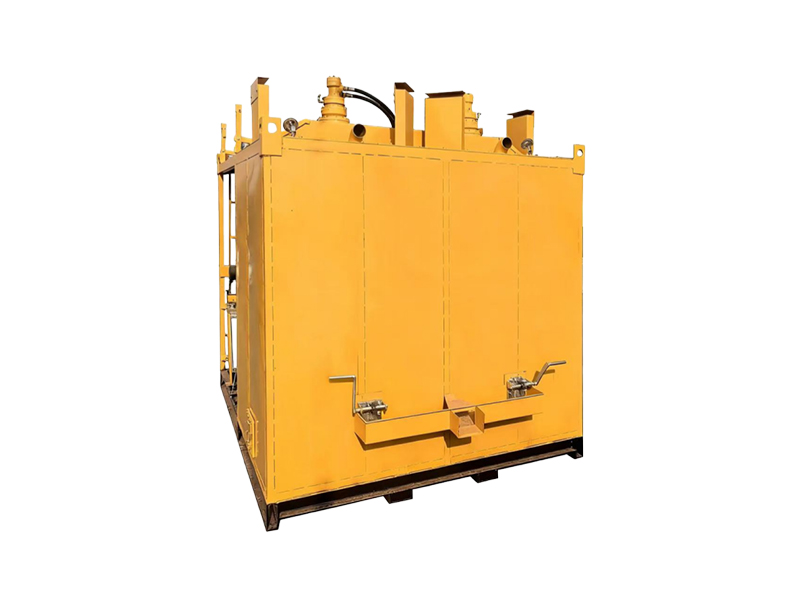

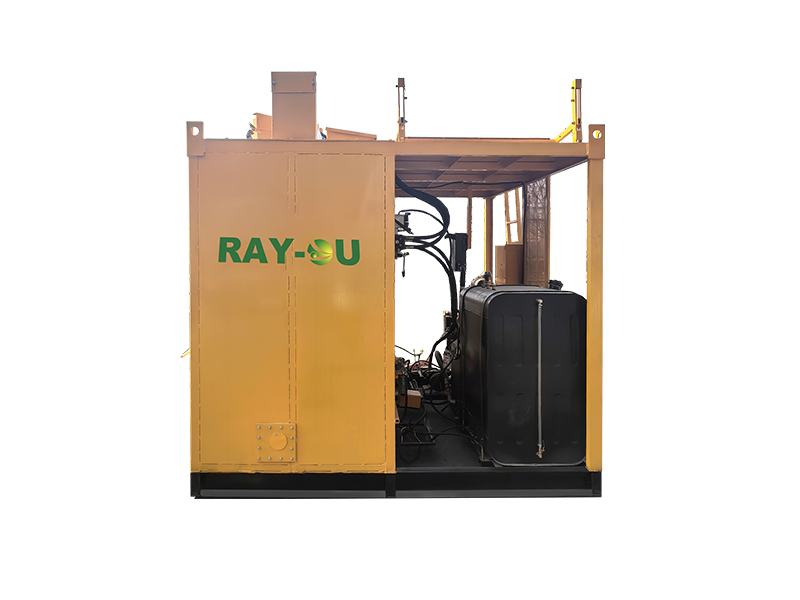

A hot-melt kettle specifically designed for driving-type road marking machines. Its large capacity ensures sufficient paint supply for rapid construction, while its exceptional temperature retention eliminates the need for lengthy preheating the next day, allowing immediate operation.
Technical Specifications
Engine: Kubota® V1505D 28kW diesel engine
Kettle Capacity: 3000kg × 2
Diesel Tank: 350L
Hydraulic Oil Tank: 200L
Electrical System: DC12V lead-acid battery, generator charging
Heating Stove: Beckett® diesel burner
Mixing System: Integrated hydraulic control valve, forward/reverse mixing with overload protection
Insulation Method: Packed insulation, maintaining residual tank temperature of 140-180°C after 18 hours
Size: 2700 × 2350 × 2700 mm
Net Weight: 4000 kg
