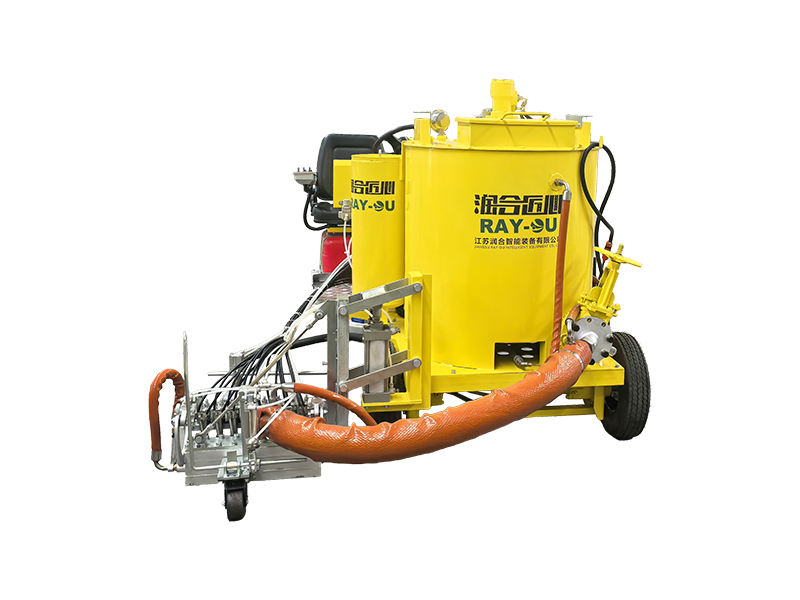

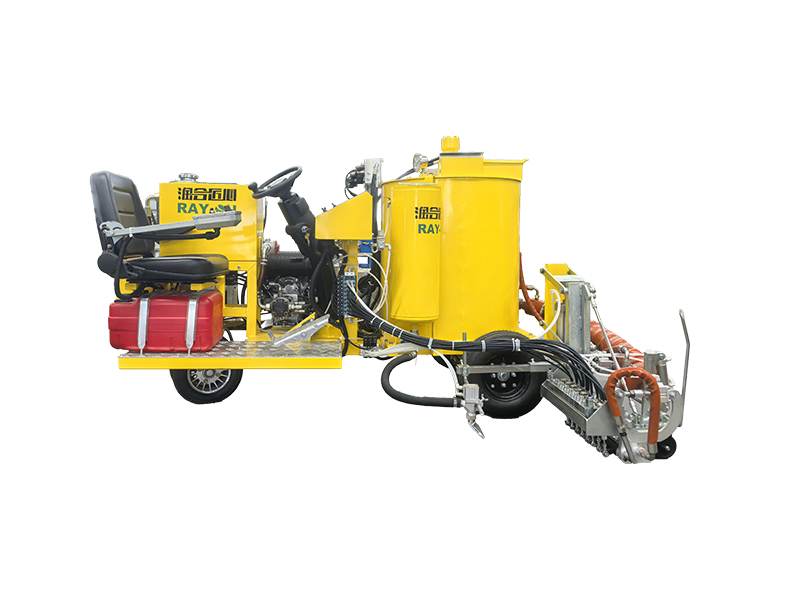

Compact driving-type hot-melt extrusion road marking machine with ample power. The paint pipeline employs a circulating thermal oil system for temperature maintenance, while the computer enables on-site configuration of marking data. Features an automatic dashed line function.
Technical Specifications
Engine: Honda® GX690 gasoline engine (13kW)
Air compressor displacement: 0.18m³/min (0.8MPa)
Paint tank capacity: 180L (360kg)
Heating method: LPG burner heating with thermal oil circulation for temperature maintenance
Hydraulic system: Danfoss®
Line Marking Bucket: Standard 20cm width, adjustable line width 5-20cm
Optional Configurations: 5-50mm extrusion line buckets, oscillating line buckets
Line Marking Bucket Control: Pneumatic lift
Travel Speed: 0-10km/h
Gradeability: 11°
Size: 2400×1350×1450mm
Net Weight: 800kg
