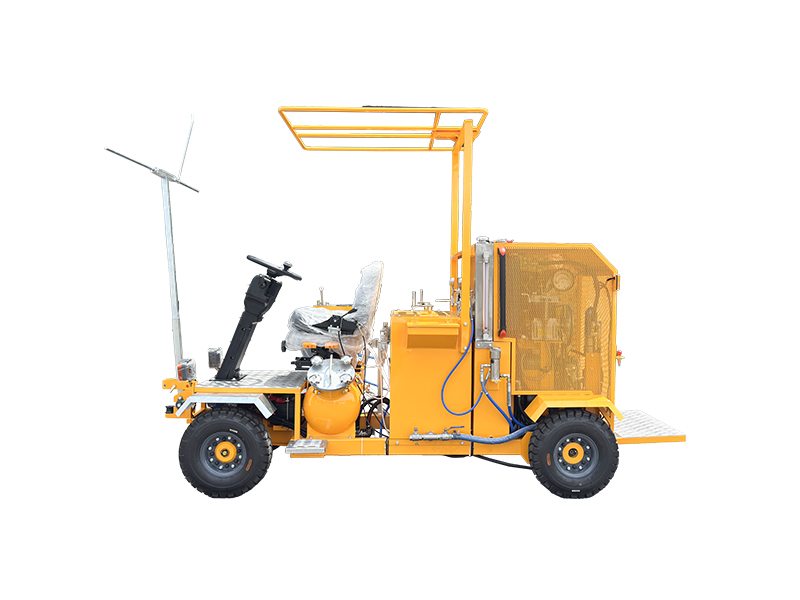

The higher spray flow rate and flexible mobility enable the machine to handle a variety of complex road conditions. Its compact size and excellent operator visibility are key features. Equipped with an integrated computer panel for control, the machine employs modular assembly for components, facilitating maintenance.
Technical Specifications
Configuration: Dual pumps, dual automatic spray guns, one manual spray gun, air-blasted glass beads, automatic wire cutter
Engine: Honda® GX690 gasoline engine (13kW)
Fuel tank: 50L
Air compressor flow rate: 0.18m³/min (0.8MPa)
Paint tank: 190L
Hydraulic Plunger Pumps: 9L × 2
Working Pressure: 10-20MPa
Spray Gun Quantity: 2 automatic spray guns, 1 manual spray gun
Glass Bead Hopper: 50L
Glass Bead Spray Guns: 2 pneumatic spray guns
Hydraulic System: Danfoss®
Hydraulic Oil Tank: 80L (travel system)
Hydraulic Oil Tank: 12L (Hydraulic Pump)
Spraying Width: 50-600mm
Spray Gun Arm Control: Pneumatic Lift
Travel Speed: 0-8km/h
Gradeability: 11°
Size: 3000×1980×2300mm
Net Weight: 1100kg
