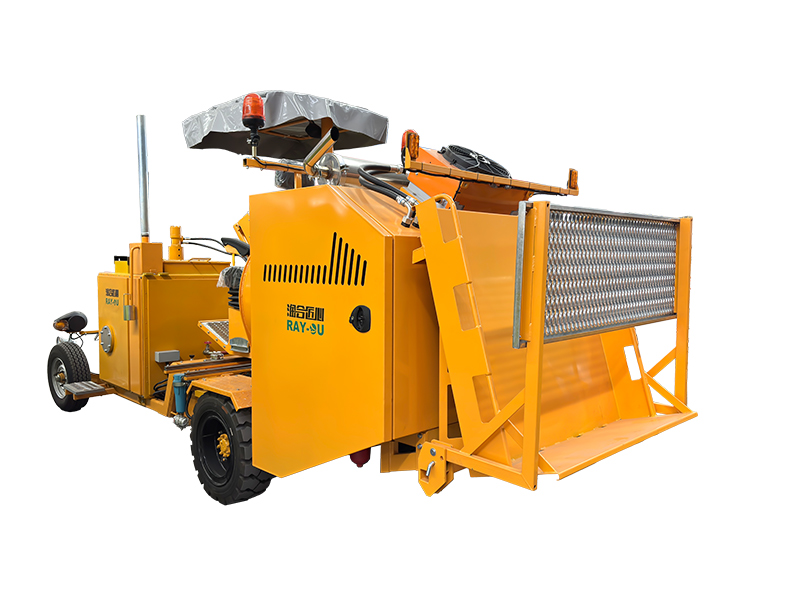

Extruded thermoplastic road markings represent the most efficient method for constructing ordinary road markings. The onboard computer allows selection of various marking shapes and enables free adjustment of marking parameters. The coating is maintained at temperature using thermal oil. Robust power output and precise machine control ensure rapid application, with all components utilising world-renowned brand products.
Technical Specifications
Engine: Kubota® four-cylinder water-cooled diesel engine
300E:47kW 500E:67.6kW
Air compressor flow rate: 0.49m³/min at 0.8MPa
Coating tank capacity: 300E300L(500kg) 500E:500L (1000kg)
Glass bead hopper capacity: 150L
Heating and insulation method: Beckett® diesel burner, thermal oil circulation insulation, automatic temperature control
Hydraulic System: Danfoss®
Marking Bar: Standard 30cm width, adjustable line width 5-30cm
Optional Configuration: 5-50cm extrusion marking bar, oscillating line bar
Marking Bar Control: Hydraulic lift
Travel Speed: 0-10km/h
Gradeability: 11°
Construction Efficiency: 300E:300m²/h 500E:450 m²/h
Line Marking Control: Computer pre-programmed with multiple line parameters, freely selectable on-site
Line Patterns: Flat lines, checkerboard lines, staircase lines, piano lines, and other pre-programmed markings
Size: 300E:5750×2200×2700mm 500E:6300 × 2200 × 2750 mm
Net Weight: 300E:2800kg 500E:4300 kg
